Weβve noticed that many Magento 2 developers face difficulties when trying to create UI component grid and form in the admin panel.
In this tutorial, we will show you how to
- Create UI component grid and
- Create UI component form
- CRUD operations such as save, delete, update, massStatus, massDelete records
Here is the step-by-step process to create UI component grid and form from scratch in Magento 2.
1. Activate Module
Create The Module Configuration File Named Module.Xml
Create app/code/Thecoachsmb/Grid/etc/module.xml file
<?xml version="1.0"?> <config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Module/etc/module.xsd"> <module name="Thecoachsmb_Grid" setup_version="1.0.0"> </module> </config>
Create Registration.php file for registering module
Create app/code/Thecoachsmb/Grid/registration.php file
<?php \Magento\Framework\Component\ComponentRegistrar::register( \Magento\Framework\Component\ComponentRegistrar::MODULE, 'Thecoachsmb_Grid', __DIR__ );
2.Β Create Route file routes.xml
Now, the next step is to add an admin router of the module.Β For that, we need to create aΒ routes.xml fileΒ In app/code/Thecoachsmb/Grid/etc/adminhtml/routes.xml
<?xml version="1.0"?> <config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:App/etc/routes.xsd"> <router id="admin"> <route id="thecoachsmb" frontName="thecoachsmb"> <module name="Thecoachsmb_Grid" before="Magento_Adminhtml"/> </route> </router> </config>
3. Create Menu for our custom module in Admin Panel
Next, we will have to add link in admin menu for which we need to create menu.xml
Create app/code/Thecoachsmb/Grid/etc/adminhtml/menu.xml file
Menu Name – Thecoachsmb
Sub-Menu Name – Articles
<?xml version="1.0"?> <config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:module:Magento_Backend:etc/menu.xsd"> <menu> <add id="Thecoachsmb_Grid::gridmanager" title="Thecoachsmb" module="Thecoachsmb_Grid" sortOrder="10" resource="Thecoachsmb_Grid::gridmanager"/> <add id="Thecoachsmb_Grid::create" title="Grid Manager" module="Thecoachsmb_Grid" sortOrder="20" parent="Thecoachsmb_Grid::gridmanager" action="thecoachsmb/grid/index" resource="Thecoachsmb_Grid::create"/> </menu> </config>
Clear cache : php bin/magento c:f
Refresh the Admin Panel, you should see Menu as shown below.

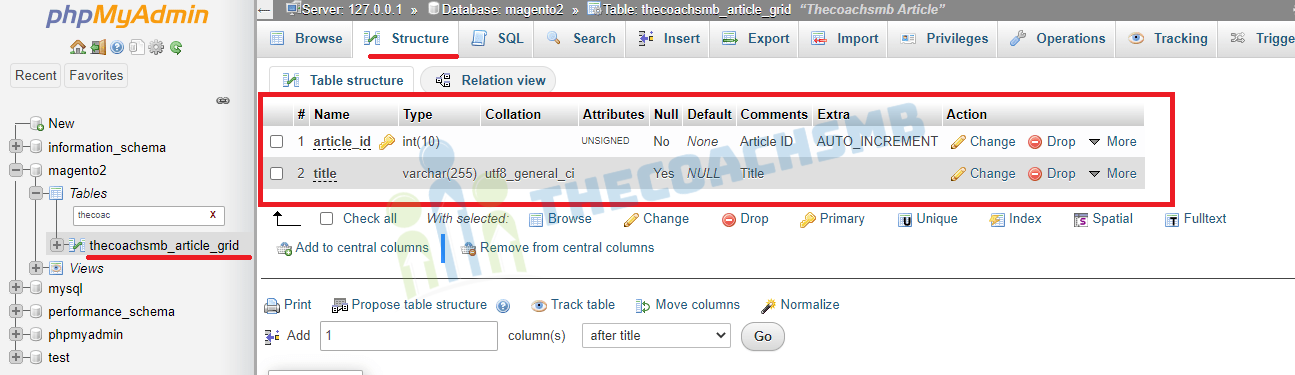

4. Create Table
Create app/code/Thecoachsmb/Grid/etc/db_schema.xml file
Here Table Name – thecoachsmb_article
Columns – article_id, title
<?xml version="1.0"?> <schema xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Setup/Declaration/Schema/etc/schema.xsd"> <table name="thecoachsmb_article_grid" resource="default" engine="innodb" comment="Thecoachsmb Article"> <column xsi:type="int" name="article_id" unsigned="true" nullable="false" identity="true" comment="Article ID"/> <column xsi:type="varchar" name="title" nullable="true" length="255" comment="Title"/> <constraint xsi:type="primary" referenceId="PRIMARY"> <column name="article_id"/> </constraint> </table> </schema>
Now, run the below command to update this table in the databse:
php bin/magento setup:upgrade && php bin/magento setup:static-content:deploy -f
5. Create the Model file
After that, we will need to take care of the business logic and a single instance of object. So, letβs create Grid.php in Β app/code/Thecoachsmb/Grid/Model/Grid.php file
<?php namespace Thecoachsmb\Grid\Model; use Thecoachsmb\Grid\Api\Data\GridInterface; class Grid extends \Magento\Framework\Model\AbstractModel implements GridInterface { /** * CMS page cache tag. */ const CACHE_TAG = 'thecoachsmb_article'; /** * @var string */ protected $_cacheTag = 'thecoachsmb_article'; /** * Prefix of model events names. * * @var string */ protected $_eventPrefix = 'thecoachsmb_article'; /** * Initialize resource model. */ protected function _construct() { $this->_init('Thecoachsmb\Grid\Model\ResourceModel\Grid'); } /** * Get EntityId. * * @return int */ public function getArticleId() { return $this->getData(self::ARTICLE_ID); } /** * Set EntityId. */ public function setArticleId($articleId) { return $this->setData(self::ARTICLE_ID, $articleId); } /** * Get Title. * * @return varchar */ public function getTitle() { return $this->getData(self::TITLE); } /** * Set Title. */ public function setTitle($title) { return $this->setData(self::TITLE, $title); } }
6. Now, Create the InterfaceΒ file
Create GridInterface.php in app\code\Thecoachsmb\Grid\Api\Data folder.
<?php namespace Thecoachsmb\Grid\Api\Data; interface GridInterface { /** * Constants for keys of data array. Identical to the name of the getter in snake case. */ const ARTICLE_ID = 'article_id'; const TITLE = 'title'; /** * Get ArticleId. * * @return int */ public function getArticleId(); /** * Set ArticleId. */ public function setArticleId($articleId); /** * Get Title. * * @return varchar */ public function getTitle(); /** * Set Title. */ public function setTitle($title); }
7. Create the Resource Model file
Now, for table βthecoachsmb_article_gridβ, create the ResourceModel File
<?php namespace Thecoachsmb\Grid\Model\ResourceModel; /** * Grid Grid mysql resource. */ class Grid extends \Magento\Framework\Model\ResourceModel\Db\AbstractDb { /** * @var string */ protected $_idFieldName = 'article_id'; /** * @var \Magento\Framework\Stdlib\DateTime\DateTime */ protected $_date; /** * Construct. * * @param \Magento\Framework\Model\ResourceModel\Db\Context $context * @param \Magento\Framework\Stdlib\DateTime\DateTime $date * @param string|null $resourcePrefix */ public function __construct( \Magento\Framework\Model\ResourceModel\Db\Context $context, \Magento\Framework\Stdlib\DateTime\DateTime $date, $resourcePrefix = null ) { parent::__construct($context, $resourcePrefix); $this->_date = $date; } /** * Initialize resource model. */ protected function _construct() { $this->_init('thecoachsmb_article_grid', 'article_id'); } }
8. Create the Collection file Collection.php
In app/code/Thecoachsmb/Grid/Model/ResourceModel/Grid/Collection.php
<?php namespace Thecoachsmb\Grid\Model\ResourceModel\Grid; class Collection extends \Magento\Framework\Model\ResourceModel\Db\Collection\AbstractCollection { /** * @var string */ protected $_idFieldName = 'article_id'; /** * Define resource model. */ protected function _construct() { $this->_init('Thecoachsmb\Grid\Model\Grid', 'Thecoachsmb\Grid\Model\ResourceModel\Grid'); } }
9. Create Controller to display grid in the Menu – Grid Manager
Now, we will create controller file Index.php in app/code/Thecoachsmb/Grid/Controller/Adminhtml/Grid
<?php namespace Thecoachsmb\Grid\Controller\Adminhtml\Grid; class Index extends \Magento\Backend\App\Action { /** * @var \Magento\Framework\View\Result\PageFactory */ protected $_resultPageFactory; /** * @param \Magento\Backend\App\Action\Context $context * @param \Magento\Framework\View\Result\PageFactory $resultPageFactory */ public function __construct( \Magento\Backend\App\Action\Context $context, \Magento\Framework\View\Result\PageFactory $resultPageFactory ) { parent::__construct($context); $this->_resultPageFactory = $resultPageFactory; } /** * Grid List page. * * @return \Magento\Backend\Model\View\Result\Page */ public function execute() { /** @var \Magento\Backend\Model\View\Result\Page $resultPage */ $resultPage = $this->_resultPageFactory->create(); $resultPage->setActiveMenu('Thecoachsmbl_Grid::grid_list'); $resultPage->getConfig()->getTitle()->prepend(__('Grid List')); return $resultPage; } /** * Check Grid List Permission. * * @return bool */ protected function _isAllowed() { return $this->_authorization->isAllowed('Thecoachsmb_Grid::grid_list'); } }
10. Display Grid
Ceate layout file thecoachsmb_grid_index.xml in app/code/Thecoachsmb/Grid/view/adminhtml/layout
<?xml version="1.0"?> <page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd"> <body> <referenceContainer name="content"> <!-- here we call our ui component of grid--> <uiComponent name="thecoachsmb_grid_listing"/> </referenceContainer> </body> </page>
11. Create ui component for grid row list.
Weβll create thecoachsmb_grid_listing.xml in app/code/Thecoachsmb/Grid/view/adminhtml/ui_component folder as following.
<?xml version="1.0" encoding="UTF-8"?> <listing xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Ui/etc/ui_configuration.xsd"> <argument name="data" xsi:type="array"> <item name="js_config" xsi:type="array"> <item name="provider" xsi:type="string">thecoachsmb_grid_listing.thecoachsmb_grid_listing_data_source</item> <item name="deps" xsi:type="string">thecoachsmb_grid_listing.thecoachsmb_grid_listing_data_source</item> </item> <item name="spinner" xsi:type="string">thecoachsmb_records_columns</item> <item name="buttons" xsi:type="array"> <item name="add" xsi:type="array"> <item name="name" xsi:type="string">add</item> <item name="label" xsi:type="string" translate="true">Add New Article</item> <item name="class" xsi:type="string">primary</item> <item name="url" xsi:type="string">*/*/addrow</item> </item> </item> </argument> <dataSource name="thecoachsmb_grid_listing_data_source"> <argument name="dataProvider" xsi:type="configurableObject"> <argument name="class" xsi:type="string">Magento\Framework\View\Element\UiComponent\DataProvider\DataProvider</argument> <argument name="name" xsi:type="string">thecoachsmb_grid_listing_data_source</argument> <argument name="primaryFieldName" xsi:type="string">article_id</argument> <argument name="requestFieldName" xsi:type="string">id</argument> <argument name="data" xsi:type="array"> <item name="config" xsi:type="array"> <item name="update_url" xsi:type="url" path="mui/index/render"/> </item> </argument> </argument> <argument name="data" xsi:type="array"> <item name="js_config" xsi:type="array"> <item name="component" xsi:type="string">Magento_Ui/js/grid/provider</item> </item> </argument> </dataSource> <columns name="thecoachsmb_records_columns"> <selectionsColumn name="ids"> <argument name="data" xsi:type="array"> <item name="config" xsi:type="array"> <item name="indexField" xsi:type="string">article_id</item> <item name="sorting" xsi:type="string">desc</item> <item name="sortOrder" xsi:type="number">0</item> </item> </argument> </selectionsColumn> <column name="article_id" sortOrder="20"> <settings> <filter>textRange</filter> <label translate="true">ID</label> <sorting>asc</sorting> </settings> </column> <column name="title"> <argument name="data" xsi:type="array"> <item name="config" xsi:type="array"> <item name="filter" xsi:type="string">textRange</item> <item name="label" xsi:type="string" translate="true">Title</item> </item> </argument> </column> <!-- Add Action with each row of grid and for this we will create a class Action --> <actionsColumn name="actions" class="Thecoachsmb\Grid\Ui\Component\Listing\Grid\Column\Action"> <argument name="data" xsi:type="array"> <item name="config" xsi:type="array"> <item name="resizeEnabled" xsi:type="boolean">false</item> <item name="resizeDefaultWidth" xsi:type="string">107</item> <item name="indexField" xsi:type="string">id</item> </item> </argument> </actionsColumn> </columns> </listing>
12. Create di.xml file for map data provider with collection
In app/code/Thecoachsmb/Grid/etc/di.xml
<?xml version="1.0"?> <config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd"> <preference for="Thecoachsmb\Grid\Api\Data\GridInterface" type="Thecoachsmb\Grid\Model\Grid" /> <virtualType name="Thecoachsmb\Grid\Model\ResourceModel\Grid\Grid\Collection" type="Magento\Framework\View\Element\UiComponent\DataProvider\SearchResult"> <arguments> <argument name="mainTable" xsi:type="string">thecoachsmb_article_grid</argument> <argument name="resourceModel" xsi:type="string">Thecoachsmb\Grid\Model\ResourceModel\Grid</argument> </arguments> </virtualType> <type name="Magento\Framework\View\Element\UiComponent\DataProvider\CollectionFactory"> <arguments> <argument name="collections" xsi:type="array"> <item name="thecoachsmb_grid_listing_data_source" xsi:type="string">Thecoachsmb\Grid\Model\ResourceModel\Grid\Grid\Collection</item> </argument> </arguments> </type> </config>
13. Create Action Class Action.php
In app/code/Thecoachsmb/Grid/Ui/Component/Listing/Grid/Column/Action.php
<?php namespace Thecoachsmb\Grid\Ui\Component\Listing\Grid\Column; use Magento\Framework\View\Element\UiComponent\ContextInterface; use Magento\Framework\View\Element\UiComponentFactory; use Magento\Ui\Component\Listing\Columns\Column; use Magento\Framework\UrlInterface; class Action extends Column { /** Url path */ const ROW_EDIT_URL = 'thecoachsmb/grid/addrow'; /** @var UrlInterface */ protected $_urlBuilder; /** * @var string */ private $_editUrl; /** * @param ContextInterface $context * @param UiComponentFactory $uiComponentFactory * @param UrlInterface $urlBuilder * @param array $components * @param array $data * @param string $editUrl */ public function __construct( ContextInterface $context, UiComponentFactory $uiComponentFactory, UrlInterface $urlBuilder, array $components = [], array $data = [], $editUrl = self::ROW_EDIT_URL ) { $this->_urlBuilder = $urlBuilder; $this->_editUrl = $editUrl; parent::__construct($context, $uiComponentFactory, $components, $data); } /** * Prepare Data Source. * * @param array $dataSource * * @return array */ public function prepareDataSource(array $dataSource) { if (isset($dataSource['data']['items'])) { foreach ($dataSource['data']['items'] as &$item) { $name = $this->getData('name'); if (isset($item['article_id'])) { $item[$name]['edit'] = [ 'href' => $this->_urlBuilder->getUrl( $this->_editUrl, ['id' => $item['article_id']] ), 'label' => __('Edit'), ]; } } } return $dataSource; } }
14. Now weβll start how to save/edit data in table using form
Above in our Ui component file thecoachsmb_grid_listing.xml we already add path of add form url now weβll create controller file AddRow.php in app/code/Thecoachsmb/Grid/Controller/Adminhtml/Grid
<?php namespace Thecoachsmb\Grid\Controller\Adminhtml\Grid; use Magento\Framework\Controller\ResultFactory; class AddRow extends \Magento\Backend\App\Action { /** * @var \Magento\Framework\Registry */ private $coreRegistry; /** * @var \Thecoachsmb\Grid\Model\GridFactory */ private $gridFactory; /** * @param \Magento\Backend\App\Action\Context $context * @param \Magento\Framework\Registry $coreRegistry, * @param \Thecoachsmb\Grid\Model\GridFactory $gridFactory */ public function __construct( \Magento\Backend\App\Action\Context $context, \Magento\Framework\Registry $coreRegistry, \Thecoachsmb\Grid\Model\GridFactory $gridFactory ) { parent::__construct($context); $this->coreRegistry = $coreRegistry; $this->gridFactory = $gridFactory; } /** * Mapped Grid List page. * @return \Magento\Backend\Model\View\Result\Page */ public function execute() { $rowId = (int) $this->getRequest()->getParam('id'); $rowData = $this->gridFactory->create(); /** @var \Magento\Backend\Model\View\Result\Page $resultPage */ if ($rowId) { $rowData = $rowData->load($rowId); $rowTitle = $rowData->getTitle(); if (!$rowData->getArticleId()) { $this->messageManager->addError(__('row data no longer exist.')); $this->_redirect('thecoachsmb/grid/rowdata'); return; } } $this->coreRegistry->register('row_data', $rowData); $resultPage = $this->resultFactory->create(ResultFactory::TYPE_PAGE); $title = $rowId ? __('Edit Row Data ').$rowTitle : __('Add Row Data'); $resultPage->getConfig()->getTitle()->prepend($title); return $resultPage; } protected function _isAllowed() { return $this->_authorization->isAllowed('Thecoachsmb_Grid::add_row'); } }
15. Create layout file thecoachsmb_grid_addrow.xml to display the form
For render this form create layout file thecoachsmb_grid_addrow.xml in app/code/Thecoachsmb/Grid/view/adminhtml/layout
<?xml version="1.0"?> <page xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" layout="admin-1column" xsi:noNamespaceSchemaLocation="urn:magento:framework:View/Layout/etc/page_configuration.xsd"> <body> <referenceContainer name="content"> <block class="Thecoachsmb\Grid\Block\Adminhtml\Grid\AddRow" name="add_row" /> </referenceContainer> </body> </page>
16. Add Insert Action
Create block file of form AddRow.php in app/code/Thecoachsmb/Grid/Block/Adminhtml/Grid
<?php namespace Thecoachsmb\Grid\Block\Adminhtml\Grid; class AddRow extends \Magento\Backend\Block\Widget\Form\Container { /** * Core registry. * * @var \Magento\Framework\Registry */ protected $_coreRegistry = null; /** * @param \Magento\Backend\Block\Widget\Context $context * @param \Magento\Framework\Registry $registry * @param array $data */ public function __construct( \Magento\Backend\Block\Widget\Context $context, \Magento\Framework\Registry $registry, array $data = [] ) { $this->_coreRegistry = $registry; parent::__construct($context, $data); } /** * Initialize Imagegallery Images Edit Block. */ protected function _construct() { $this->_objectId = 'row_id'; $this->_blockGroup = 'Thecoachsmb_Grid'; $this->_controller = 'adminhtml_grid'; parent::_construct(); if ($this->_isAllowedAction('Thecoachsmb_Grid::add_row')) { $this->buttonList->update('save', 'label', __('Save')); } else { $this->buttonList->remove('save'); } $this->buttonList->remove('reset'); } /** * Retrieve text for header element depending on loaded image. * * @return \Magento\Framework\Phrase */ public function getHeaderText() { return __('Add Article Data'); } /** * Check permission for passed action. * * @param string $resourceId * * @return bool */ protected function _isAllowedAction($resourceId) { return $this->_authorization->isAllowed($resourceId); } /** * Get form action URL. * * @return string */ public function getFormActionUrl() { if ($this->hasFormActionUrl()) { return $this->getData('form_action_url'); } return $this->getUrl('*/*/save'); } }
17. Create Edit Form
Create block file of form with field Form.php in app/code/Thecoachsmb/Grid/Block/Adminhtml/Grid/Edit
<?php namespace Thecoachsmb\Grid\Block\Adminhtml\Grid\Edit; class Form extends \Magento\Backend\Block\Widget\Form\Generic { /** * @var \Magento\Store\Model\System\Store */ protected $_systemStore; /** * @param \Magento\Backend\Block\Template\Context $context * @param \Magento\Framework\Registry $registry * @param \Magento\Framework\Data\FormFactory $formFactory * @param array $data */ public function __construct( \Magento\Backend\Block\Template\Context $context, \Magento\Framework\Registry $registry, \Magento\Framework\Data\FormFactory $formFactory, array $data = [] ) { parent::__construct($context, $registry, $formFactory, $data); } /** * Prepare form. * * @return $this */ protected function _prepareForm() { $dateFormat = $this->_localeDate->getDateFormat(\IntlDateFormatter::SHORT); $model = $this->_coreRegistry->registry('row_data'); $form = $this->_formFactory->create( ['data' => [ 'id' => 'edit_form', 'enctype' => 'multipart/form-data', 'action' => $this->getData('action'), 'method' => 'post' ] ] ); $form->setHtmlIdPrefix('smb_'); if ($model->getArticleId()) { $fieldset = $form->addFieldset( 'base_fieldset', ['legend' => __('Edit Article Data'), 'class' => 'fieldset-wide'] ); $fieldset->addField('article_id', 'hidden', ['name' => 'article_id']); } else { $fieldset = $form->addFieldset( 'base_fieldset', ['legend' => __('Add Article Data'), 'class' => 'fieldset-wide'] ); } $fieldset->addField( 'title', 'text', [ 'name' => 'title', 'label' => __('Title'), 'id' => 'title', 'title' => __('Title'), 'class' => 'required-entry', 'required' => true, ] ); $form->setValues($model->getData()); $form->setUseContainer(true); $this->setForm($form); return parent::_prepareForm(); } }
18. Save Data in the Database
Create Save.php in app/code/Thecoachsmb/Grid/Controller/Adminhtml/Grid for save record
<?php namespace Thecoachsmb\Grid\Controller\Adminhtml\Grid; class Save extends \Magento\Backend\App\Action { /** * @var \Thecoachsmb\Grid\Model\GridFactory */ var $gridFactory; /** * @param \Magento\Backend\App\Action\Context $context * @param \Thecoachsmb\Grid\Model\GridFactory $gridFactory */ public function __construct( \Magento\Backend\App\Action\Context $context, \Thecoachsmb\Grid\Model\GridFactory $gridFactory ) { parent::__construct($context); $this->gridFactory = $gridFactory; } /** * @SuppressWarnings(PHPMD.CyclomaticComplexity) * @SuppressWarnings(PHPMD.NPathComplexity) */ public function execute() { $data = $this->getRequest()->getPostValue(); if (!$data) { $this->_redirect('thecoachsmb/grid/addrow'); return; } try { $rowData = $this->gridFactory->create(); $rowData->setData($data); if (isset($data['id'])) { $rowData->setEntityId($data['id']); } $rowData->save(); $this->messageManager->addSuccess(__('Row data has been successfully saved.')); } catch (\Exception $e) { $this->messageManager->addError(__($e->getMessage())); } $this->_redirect('thecoachsmb/grid/index'); } /** * @return bool */ protected function _isAllowed() { return $this->_authorization->isAllowed('Thecoachsmb_Grid::save'); } }
That’s it.
